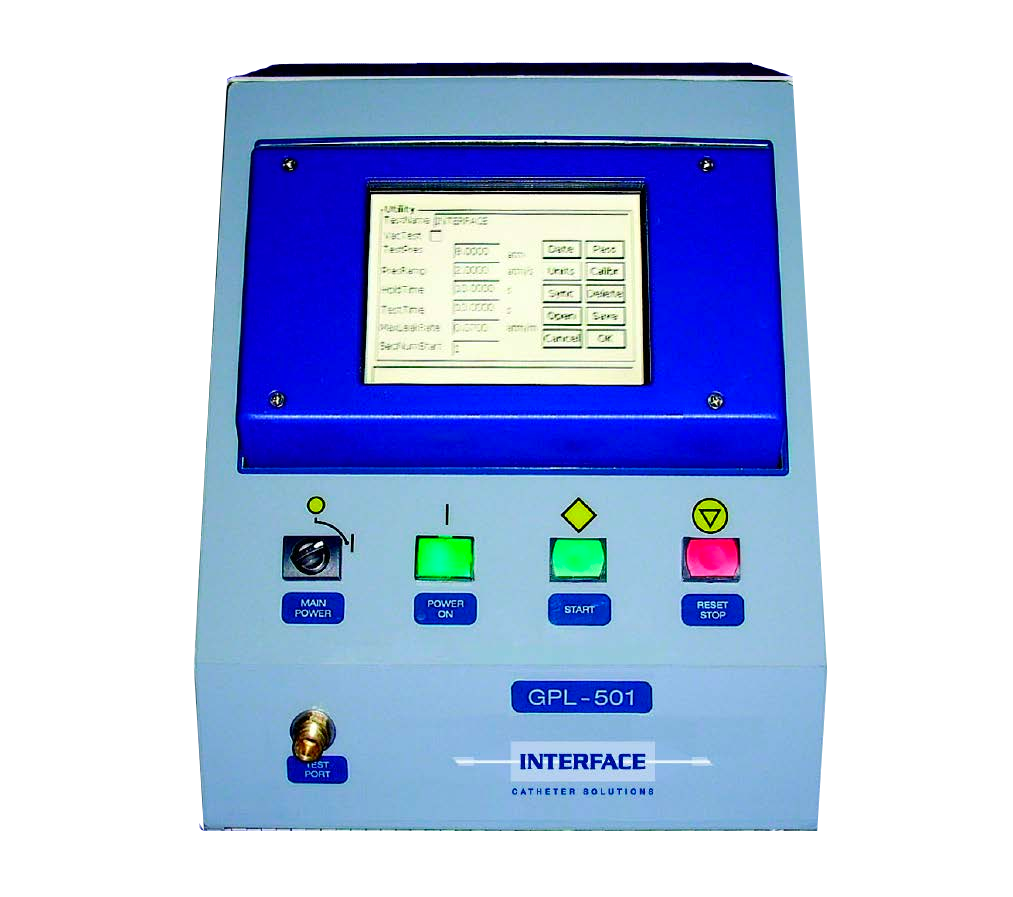

GPL-501B: Gas Pressure Leak Tester

The Interface gas pressure leak tester, model GPL-501, is a tabletop machine used for nondestructive leak testing of catheter components using dry nitrogen gas. Nitrogen gas is inert so there is no residue, water spots or water droplets on catheter components, making it ideal for testing of finished devices.

Parameters Include

  • Vacuum test
  • Ramp rate
  • Test time
  • Test pressure
  • Hold time
  • Maximum leak rate
Request A Quote
Download Brochure

Specifications

Dimensions:10” W x 12.5” H x 12” D
25 cm W x 32 cm H x 31 cm D
Weight:20 lbs / 9 kg
Electrical Power:110-220 VAC 50-60 Hz,
up to 500 Watts
Input Pressure:500-550 psi nitrogen
Output Test Pressure Connector:Compression fitting
Output Test Pressure Range:
– Pressure Test:
– Vacuum Test:		1 – 500 psi
-0.1 – -0.8 atm
Pressure Accuracy:±0.5% of full scale
Pressure Resolution:0.03 psi
Data Output:Date, Time, Test Results,
Lot and Part Numbers
Storable Test Profiles:Up to 50
Accessory Items:Balloon compliance fixture
Compact thermal printer
Rollaway catheter stand
